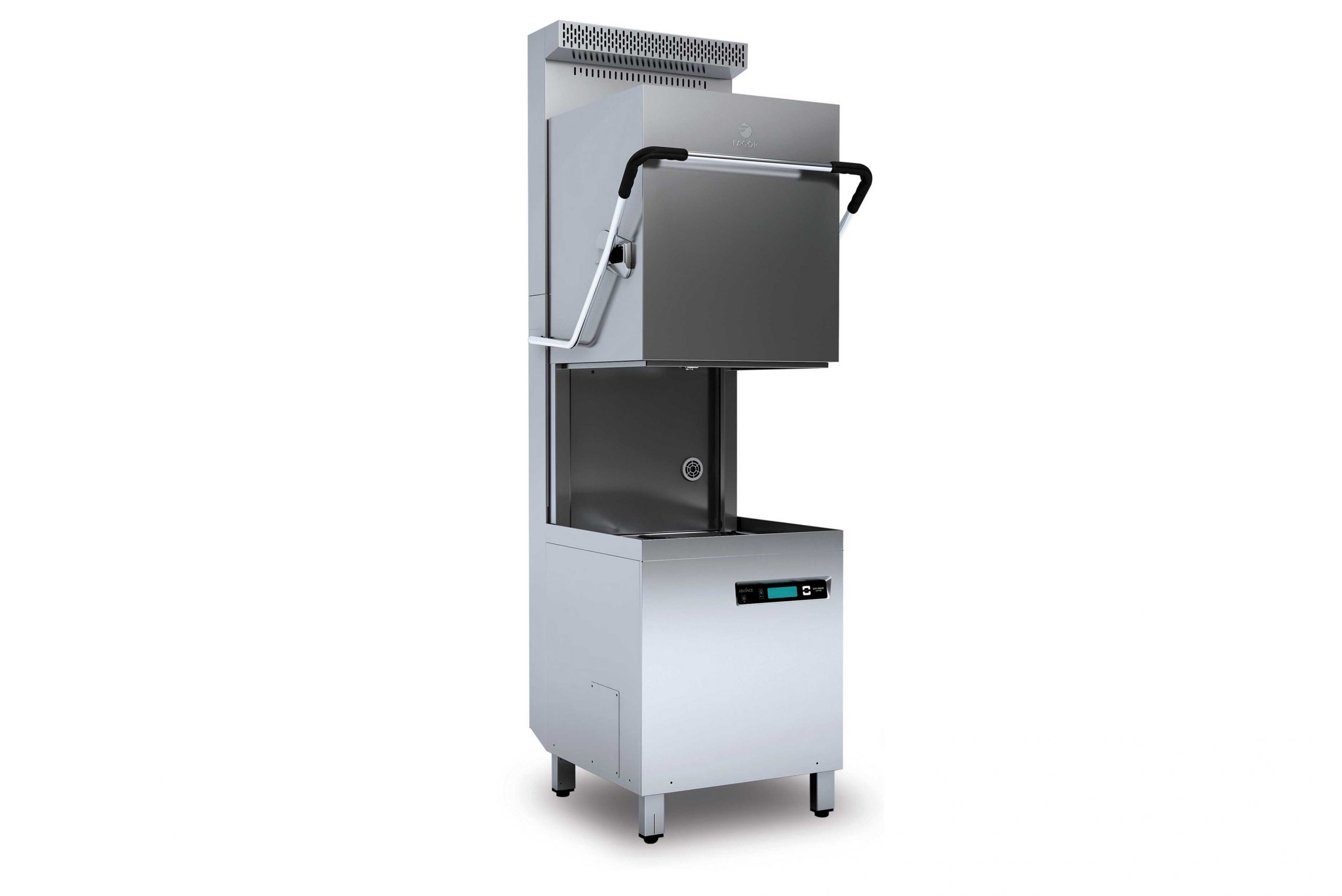

Fagor EVO-ADVANCE pass-through dishwasher with drain pump, detergent and rinse dispenser and HRS AD-125HRS
HIGH TECHNOLOGY WITHIN EVERYONE’S REACH.For those who believe that technology and simplicity can go hand-in-hand, the E-VO CONCEPT has arrived. Versions
Hood type dishwasher – EVO Generation – Advance range.
Hourly production: 65 baskets/hour – 1170 dishes/hour.
Clearance (max ware height): 440 mm.
Wash cycles: 55″- 90″ – 120″.
GLASS cycle: special program for washing glassware, based on the
specifications of hygiene and safety standard DIN 10511. Cycle of 90
seconds, with temperatures: 60 °C (wash) and 65 ºC (rinse).
HRS: version with energy recuperator. HRS collects and condenses the
steam exhausted by the machine after a full cleaning cycle, and heats up the
input water. Power: 30 W.
Made of stainless steel. Includes double skin
insulated hood, external, front and side panels.
Full double skin body and hood to isolate machine’s noise from the environment.
Counterbalanced hood.
Double rotating wash and rinse systems made of stainless steel, above and below.
Tray filters on the tank, made of AISI-304 stainless steel.
Two wash pumps, 600 W each.
Rinsing pump: 260 W. Air break system.
Drain pump: 70 W. Drainage cycle.
Tank with 1.8 kW heating element.
Tank capacity: 28 litres.
Boiler with multipower heating elements: 3 / 4,5 / 6 / 9 kW.
Boiler capacity: 9 litres.
Water consumption: 2.4 litres/rinse.
Thermostatic temperature control: washing at 60ºC and rinsing at 90ºC.
Thermo stop system that guarantees minimum rinsing temperature of 85ºC.
Safety thermostats.
Built-in automatic rinse dispenser and detergent doser.
Safety magnetic switch for hood opening.
Adjustable legs.
Water protection rating: IPX5
Total power: adjustable: 4,2 ÷ 12,0 kW.Dimensions: 658 x 756 x 1540 mm.Height with HRS recuperator: 2.200 mm.Baskets equipment: 1 x CT-10, 1 x CP-16/18 and 8 cutlery containers.
