Description

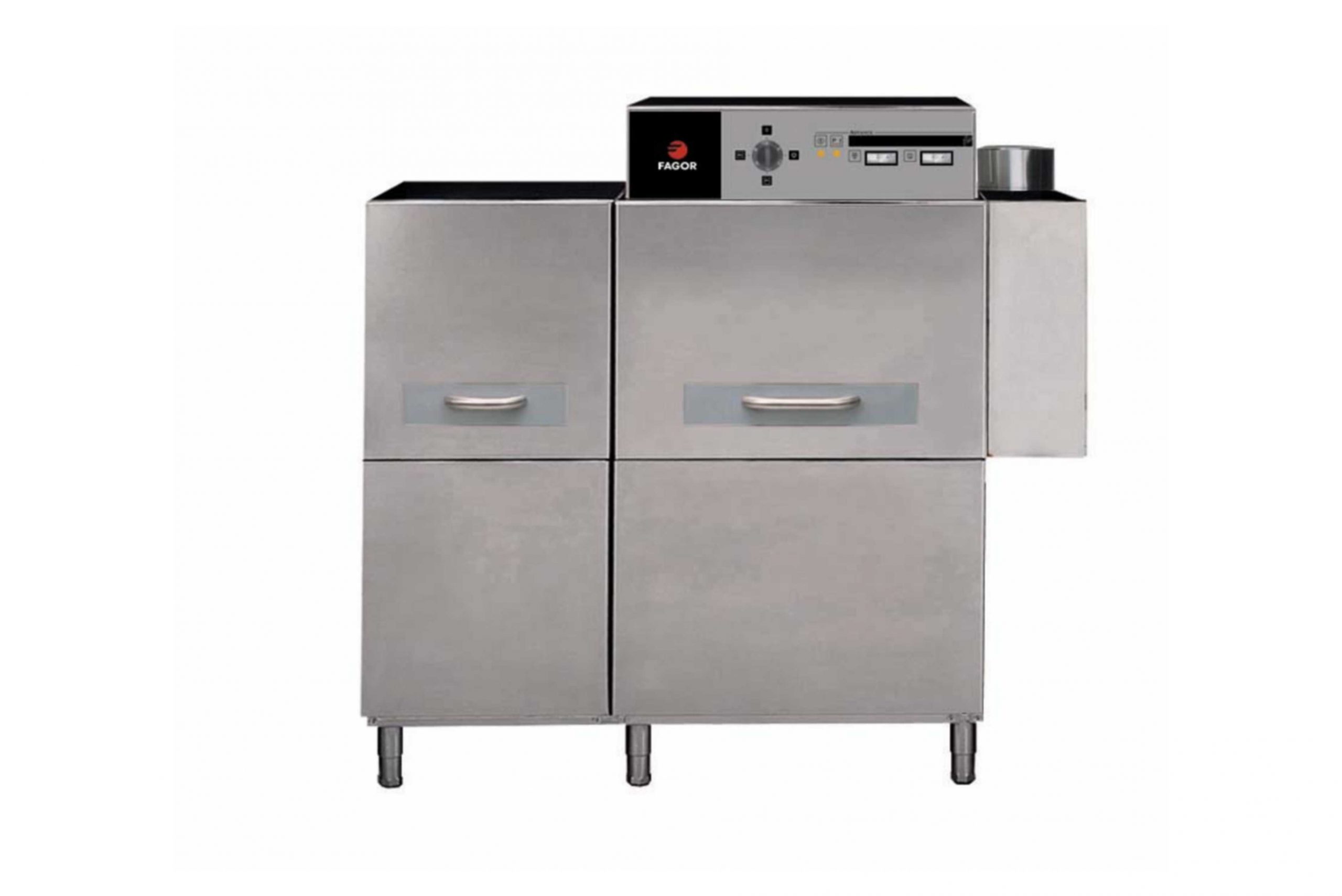

CONVEYOR DISHWASHER, FI-280 D
Made of stainless steel. Entry on the right side. Two conveyor speeds:
1st. Speed: 103 baskets/h.
2nd. Speed: 155 baskets/h.
Splash-guard module at entry. Wash module and double rinse module. Dividing curtains highly resistant to chemical agents and heat. Wash tank 90
Tray-filters removable for cleaning. Wash pump 2.2 kW.Tank heated by means of shielded elements, 12 kW.Thermostatically adjusted (wash temperature: 60 ºC). Pre-rinse module. Tank heated by means of shielded elements, 5 kW. Built-in rinse water boiler (27 kW). Safety thermostat. Analogic thermometers for wash and rinse water temperature. Water consumption: 360 l/h. Magnetic switches for wash, rinse and door opening. Energy economiser system. Motor-reducer: 250 W.
Baskets equipment: 2 x CT-10, 2 x CP-16/18, 1 x CV-16/105, and 16 cutlery containers.
Power: 46.2 kW, 3 Phase PowerDimensions: 1750 x 780 x 1580 mm.
Modules A + LV + DA1
Module | Description | Dimensions (WxDxH) mm |
A | Neutral Supplement (included in all machines). With connection for exhaust system | Length = 250 |
LV | Main Wash | Length = 900 |
DA1 | Double Rinse | Length = 600 |
