Description

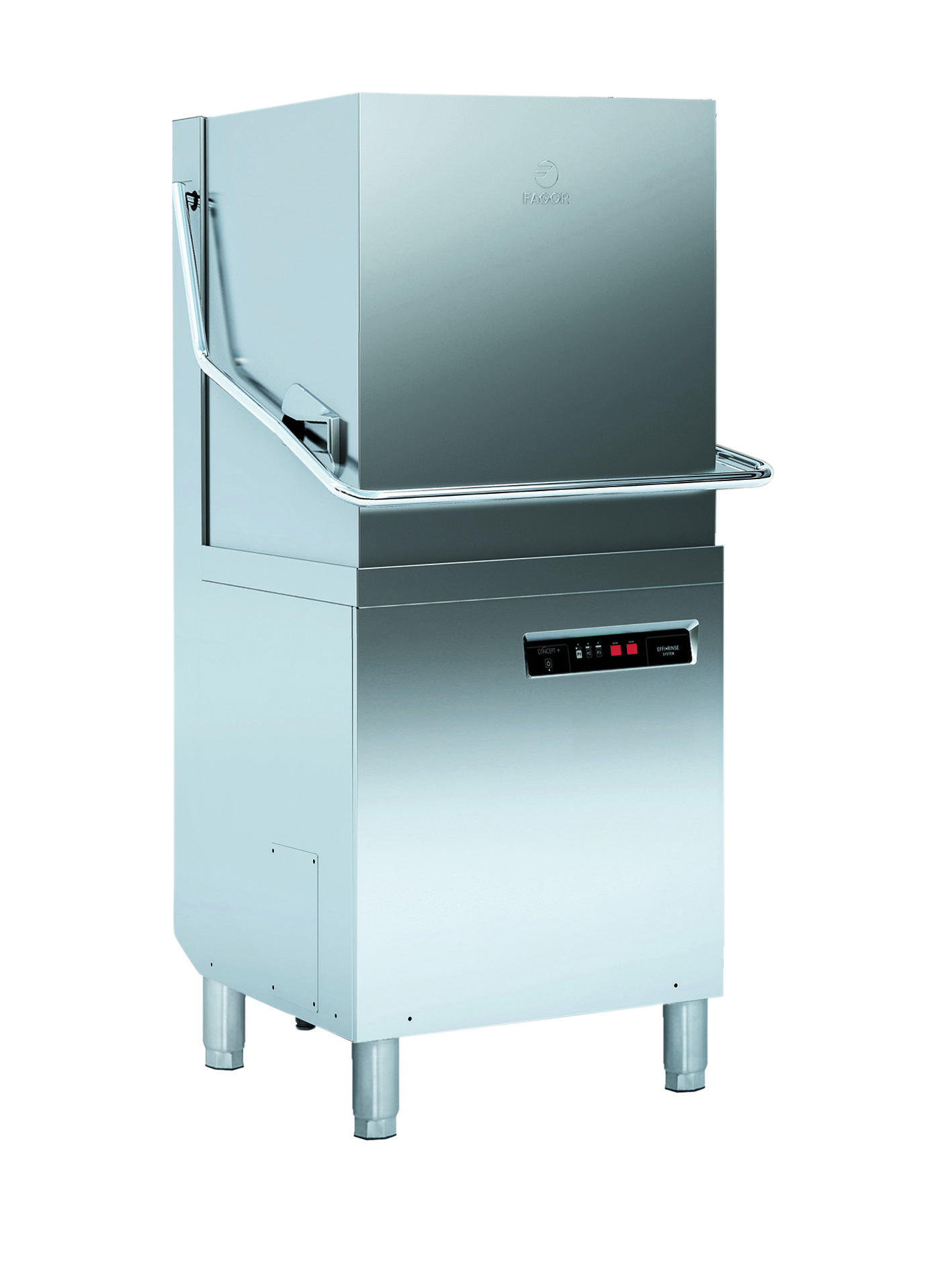

Fagor EVO-CONCEPT pass-through dishwasher with drain pump and detergent dispenser CO-112BDD
E-VO CONCEPT top-loading dishwasher with recessed wash tank, and wash and rinse arms in AISI-304 stainless steel. Dish service height up to 440 mm. Constant water consumption of 2.4 litres per cycle for the rinse with a mains pressure of 2 bar. New optimised hydraulic EFFI-WASH system, with stainless steel wash arms and a powerful 0.6 kW pump (EVCO-112), guaranteeing a top quality effective and efficient wash with an optimum Sinner circle balance. It also has a built-in rinse aid dispenser and optional drainage pump (B) and detergent dispenser (DD) fitted at factory or in kit form. It can be installed in corners and has adjustable feet to permit levelling according to the needs of the establishment. The equipment has a multi-connection box for easy installation and repair with a low risk of failure. Magnetic hood open sensor and automatic starter. Electronical control panel making it easy to use.
Hood type dishwasher – EVO Generation – Concept range.
Depth mm 775,00 950,00 Hourly production: 40 baskets/hour – 720 dishes/hour.
Clearance (max ware height): 440 mm.
Height mm 1.540,00 1.750,00 Electronic control.
Weigth Kg 135,00 150,00 Wash cycles: 90″ – 120″ – 180″.
Volumen m3 1,45
Made of stainless steel.
ELECTRICITY Counterbalanced hood.
Double rotating wash and rinse systems, made of AISI-304 stainless steel.
Electric power KW 11,10 Wash pump, 600 W each.
230V -1+N 2×16+T – 63 A Drain pump: 70 W. Drainage cycle.
230V – III 3×6+T – 40 A Tank with 4.5 kW heating power.
Tank capacity: 34 litres.
400V – III+N 4×2,5+T – 25 A Boiler heating power: 6 kW.
Boiler capacity: 9 litres.
WATER Water consumption: 2.4 litres/rinse.
Water consumption (lit/h) 96,00 Thermostatic temperature control: washing at 60ºC and rinsing at 90ºC.
Pressure (Kg/cm2) 2 ÷ 4 Thermostop.
Safety thermostats.
GAS Built-in automatic rinse dispenser and detergent doser.
Built-in non-return valve.
Not used Safety magnetic switch for hood opening.
Adjustable legs.
Tray size 500×500
Water protection rating: IPX4
Total power: 6.60 / 11,1 kW.Dimensions: 665 x 775 x 1540 mm (2050 mm open hood).IF THIS UNIT IS BEING INSTALLED WITH A WALL OR OTHER OBJECT ON THE LEFT HANDSIDE, IT MUST BE WIRED FIRST BEFORE COMPLETING INSTALLATION. Baskets equipment: 1 x CT-10, 1 x CP-16/18 and 2 cutlery containers.
