Description

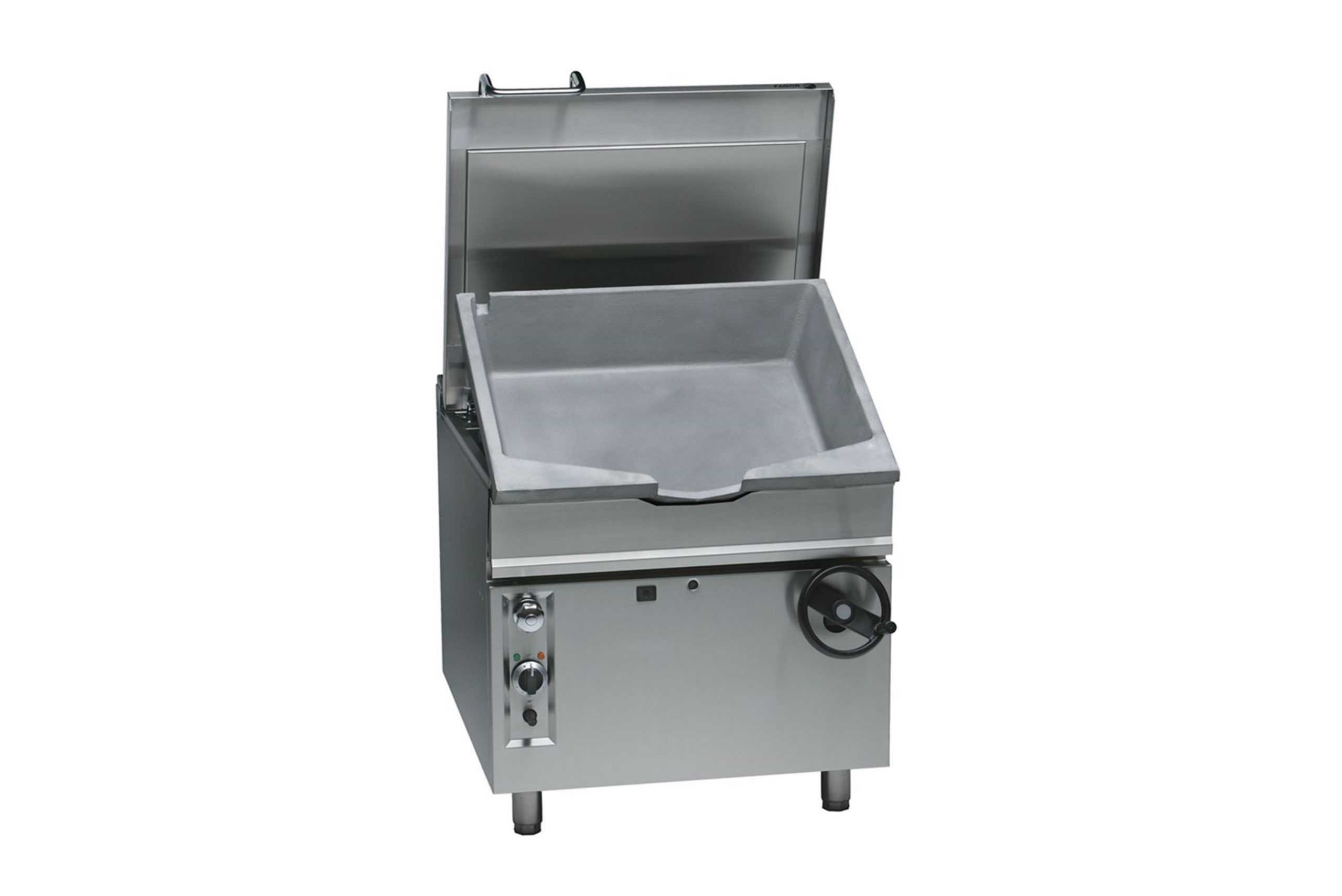

Fagor 900 series NG 80 litre crank tilting bratt pan with SS burner and Temp control SBG9-10I
The Bratt pans in the 900 Series have counterbalanced hinged lids with a lower reinforced recess. The hinge allows the lid to be opened at any angle. The pans have a temperature control thermostat with a temperature range of 50 ºC to 315 ºC, and pilot lights to indicate machine on and machine heating.
Made of stainless steel
Counterweighted hinged lid.
Lid can be used as benchtop when closed.
Pan capacity: 80 litres (approx.).
Surface area: 50 dm2
Stainless steel pan, with heat diffuser bottom 10 mm. thick.
Stainless steel tubular burner controlled by solenoid valve and
thermostat temperature control (50 ºC to 315 ºC)
Crank tilting system.
Safety system to extinguish the flame if the pan raises.
Water feed.
Power: 18.6 kW or 66 mj./h.
Dimensions: 850 x 900 x 850* mm.*Supplied on height adjustable legs; total height adjusts from 850mm to900mmElectrical supply: 230V-1+NUNIT NOT SUPPLIED WITH POWER CORD AND PLUG.THESE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN.
